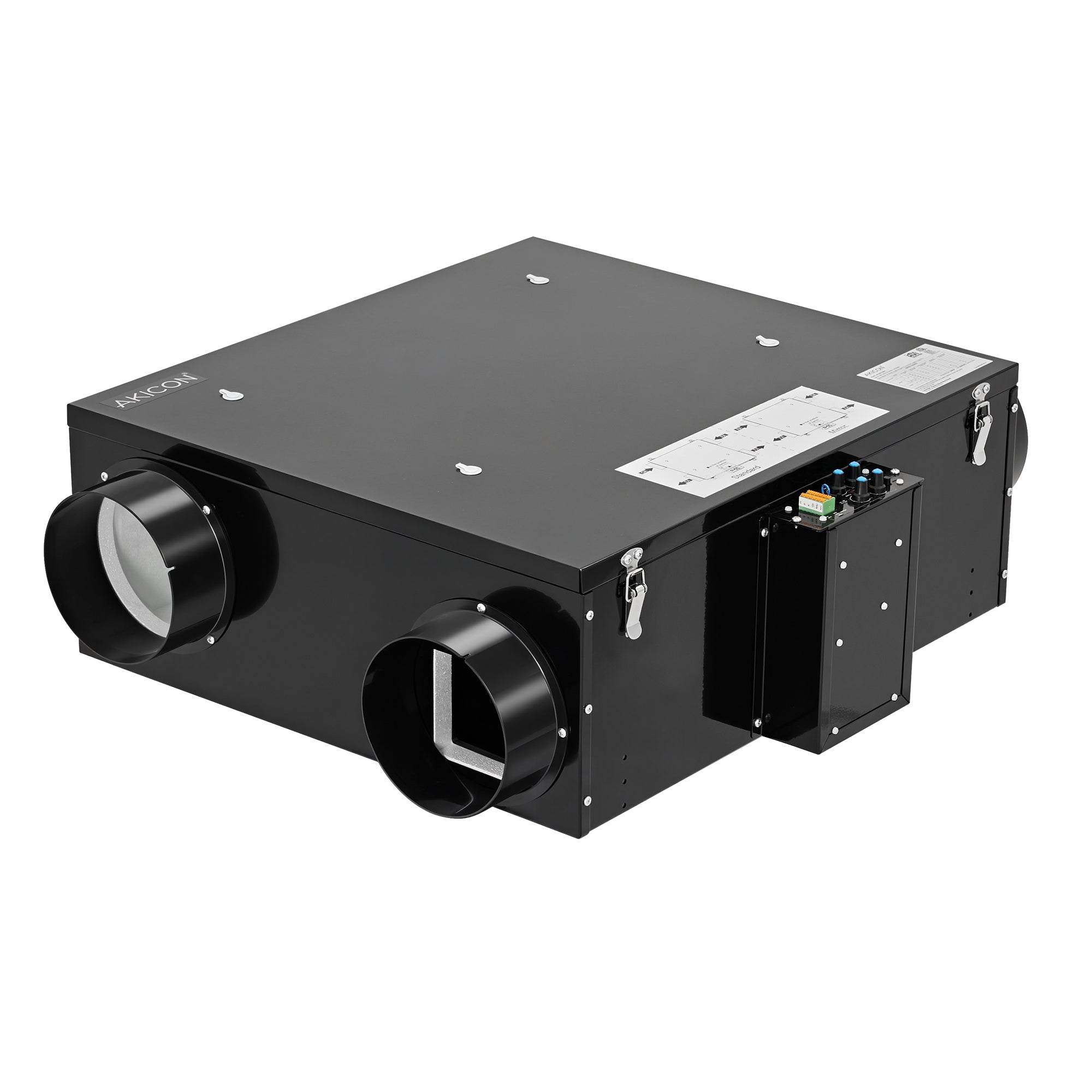

Akicon 30-150 CFM Energy Recovery Ventilator, Whole House Ventilation Fan

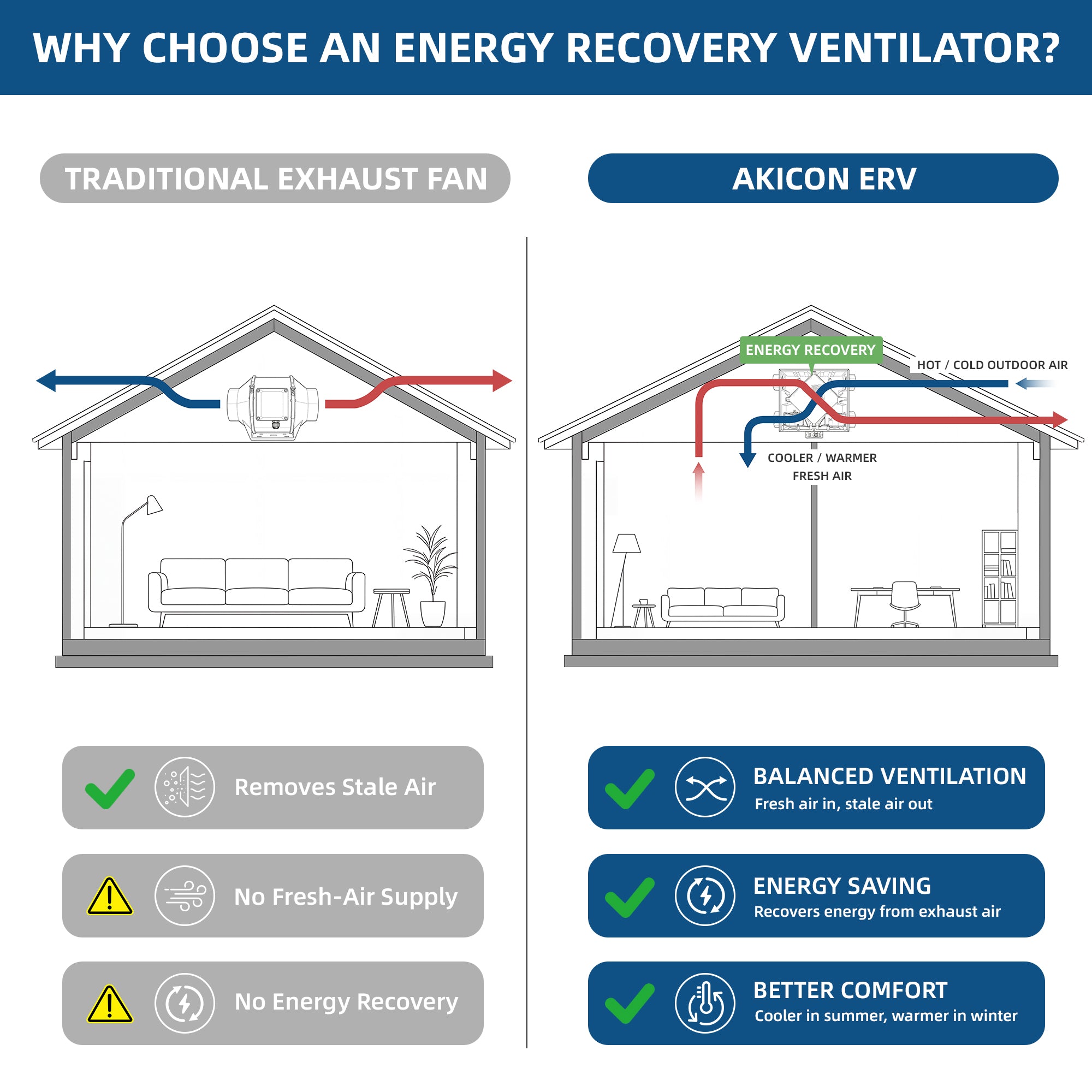

[MORE FRESH AIR, MORE AIRFLOW] Bring fresh outdoor air into your home while removing stale indoor air for balanced ventilation. With airflow up to 150 CFM, the energy recovery ventilator is designed for larger spaces and higher ventilation demands, helping refresh living areas, basements and other enclosed spaces where stronger fresh-air exchange is needed.

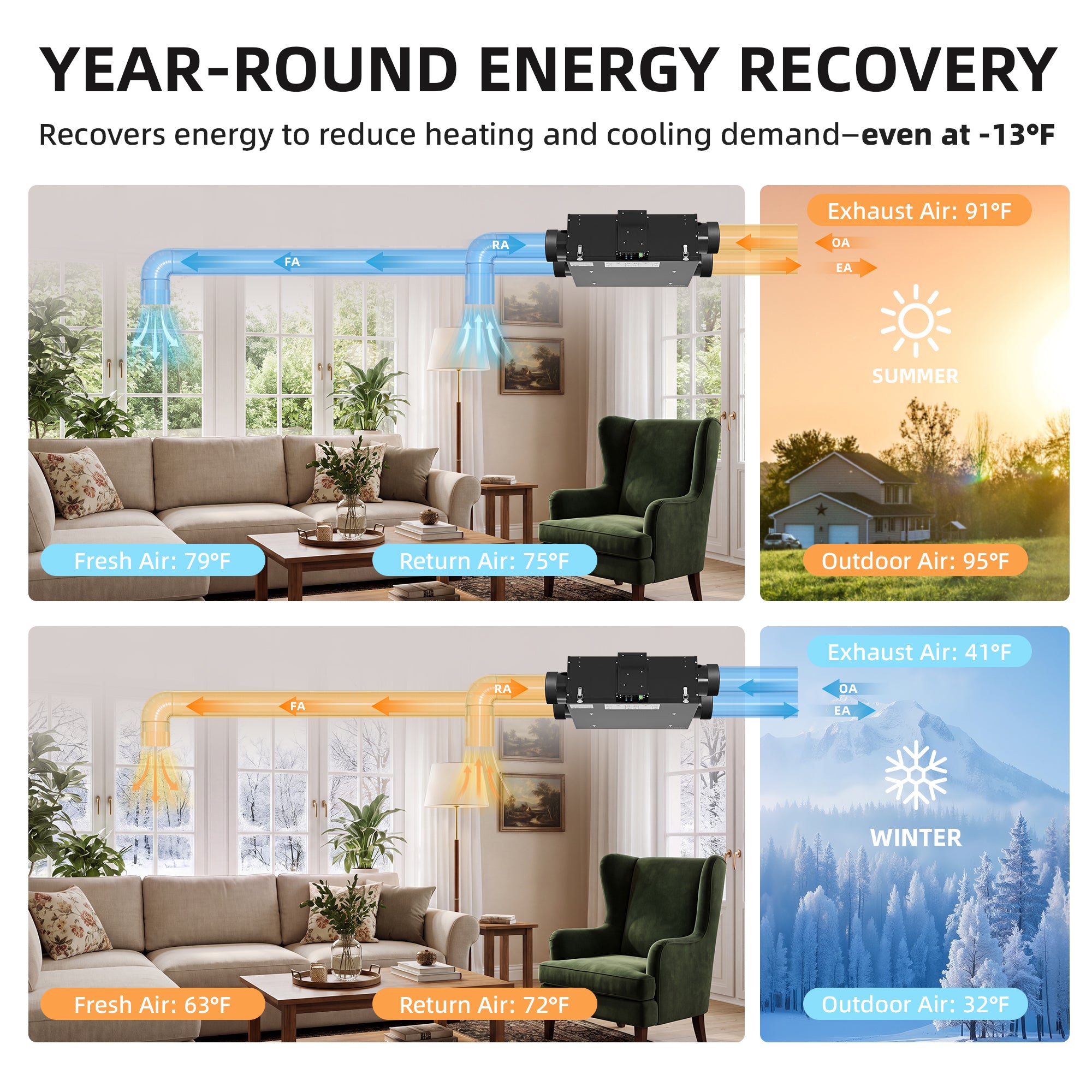

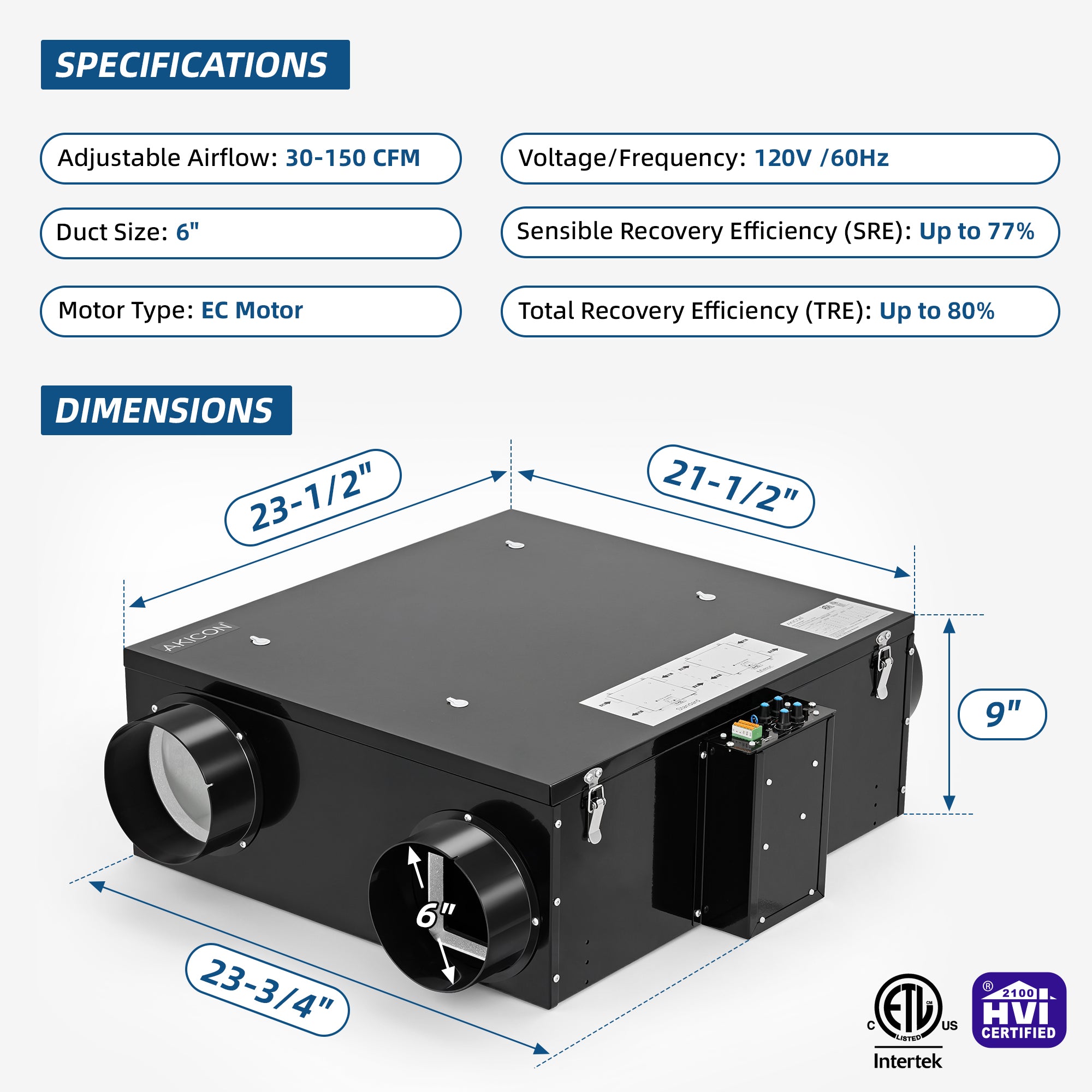

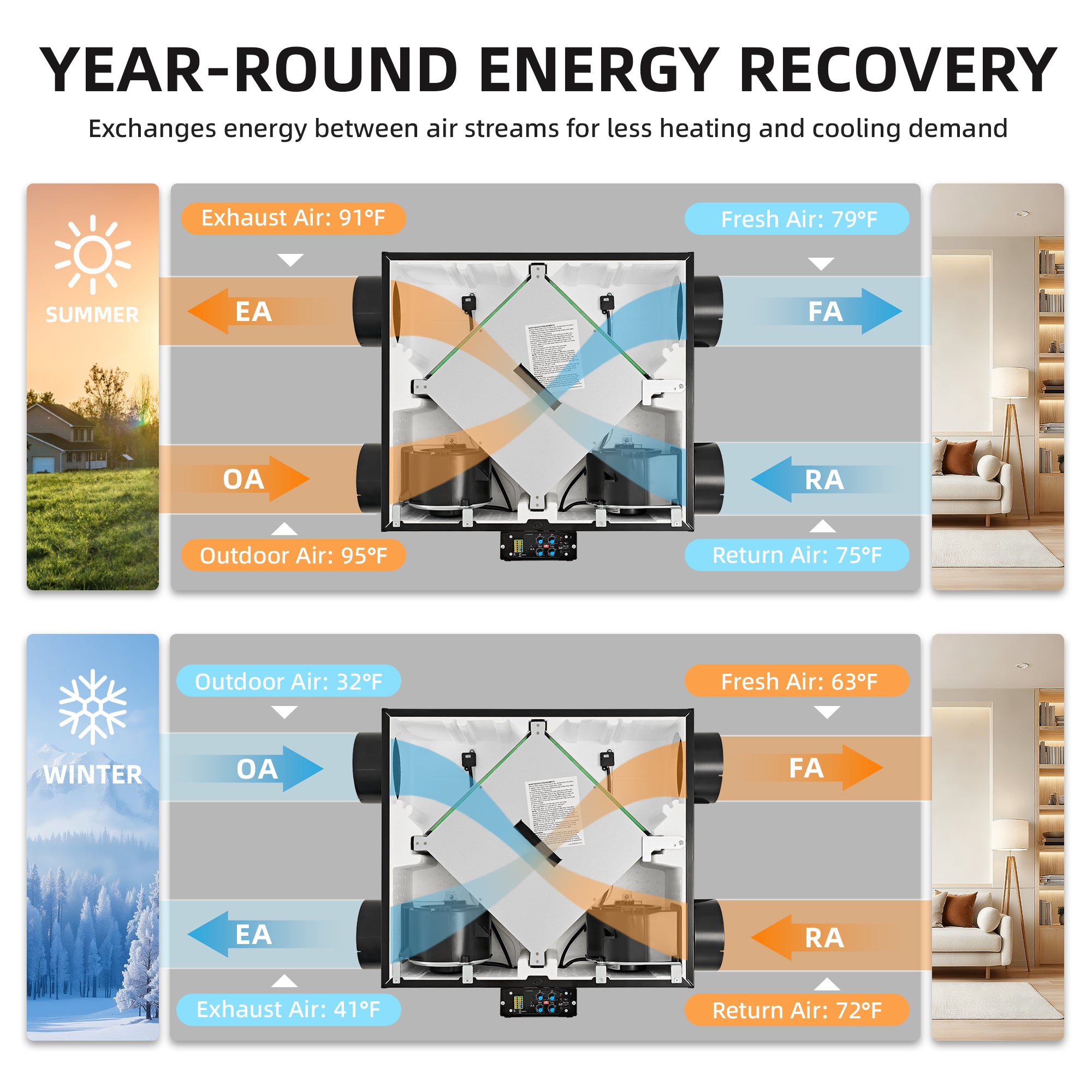

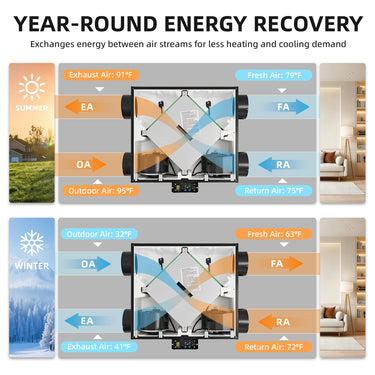

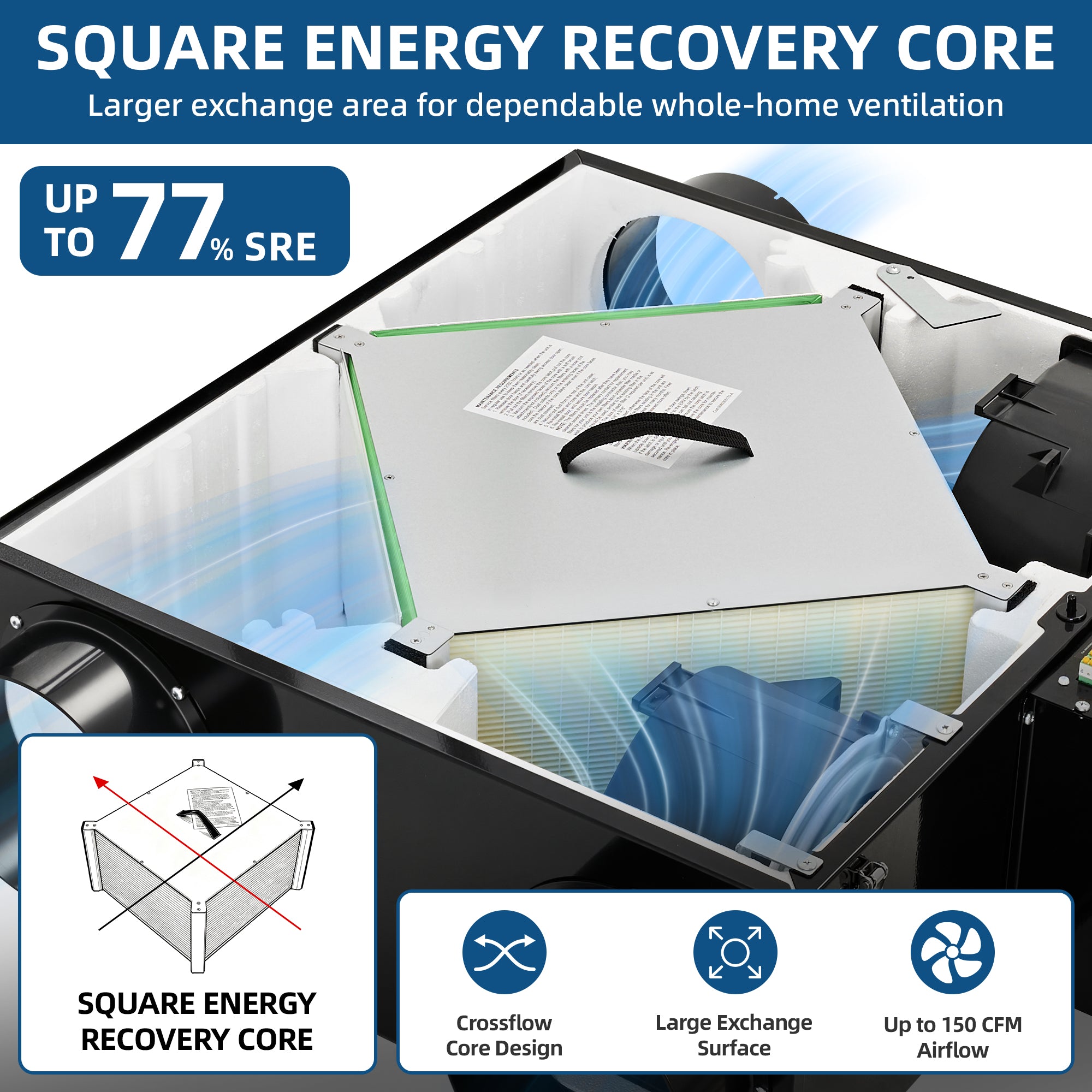

[ENERGY RECOVERY FOR COMFORT] The square cross-flow core transfers energy between incoming and outgoing air streams instead of simply exhausting conditioned indoor air. The ERV ventilation system delivers up to 77% SRE at 32°F and up to 80% TRE at 95°F, helping reduce unnecessary heating and cooling loss while supporting year-round indoor comfort.

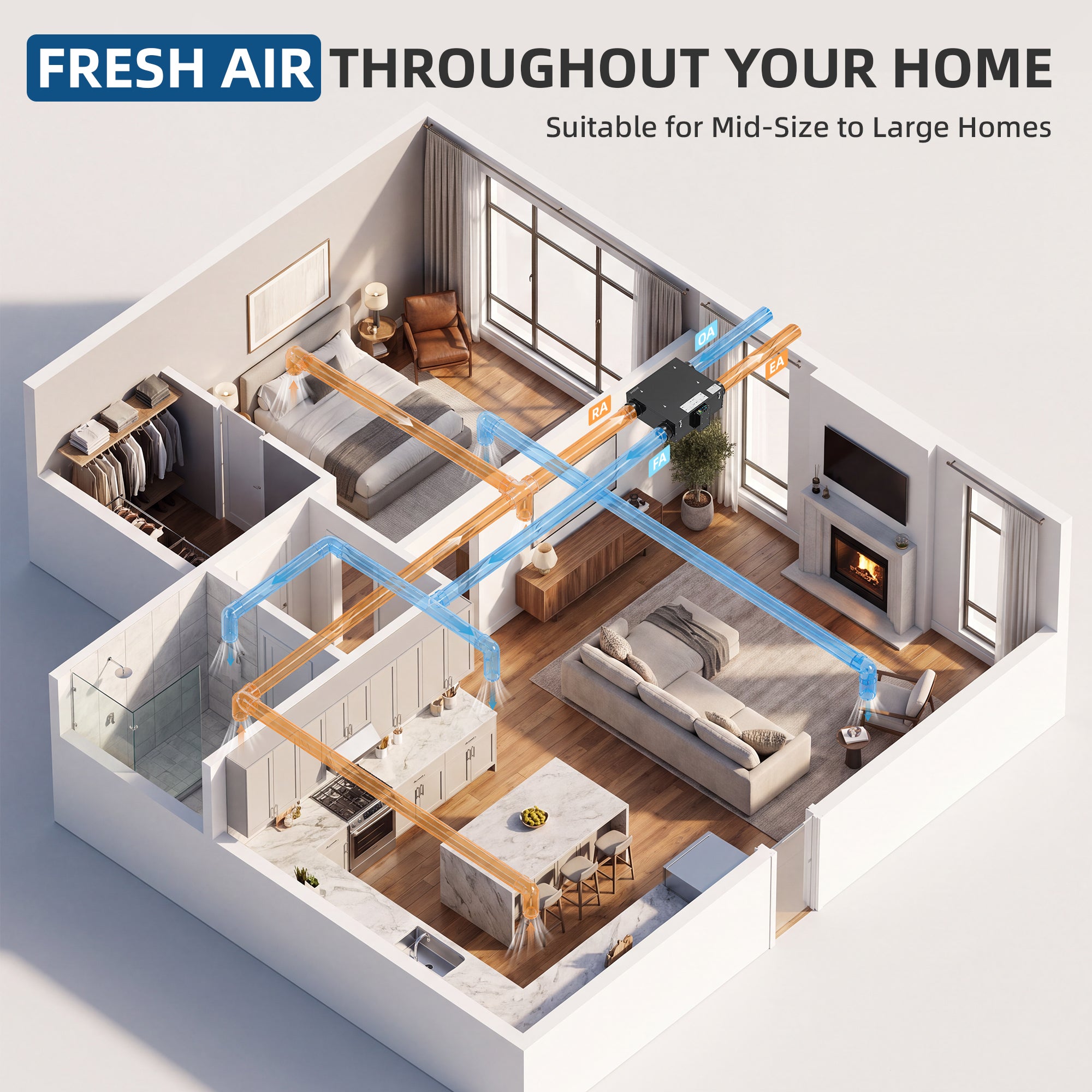

[ADJUSTABLE 30–150 CFM AIRFLOW] Built for larger rooms, multi-room residential spaces and higher ventilation needs. Independently adjust outside-air and return-air airflow starting at 30 CFM to match different home and HVAC needs. Select either a 120 or 150 CFM high-speed setting, with 150 CFM factory preset. Dual EC motors deliver steady, energy-efficient supply and exhaust airflow for balanced fresh-air exchange.

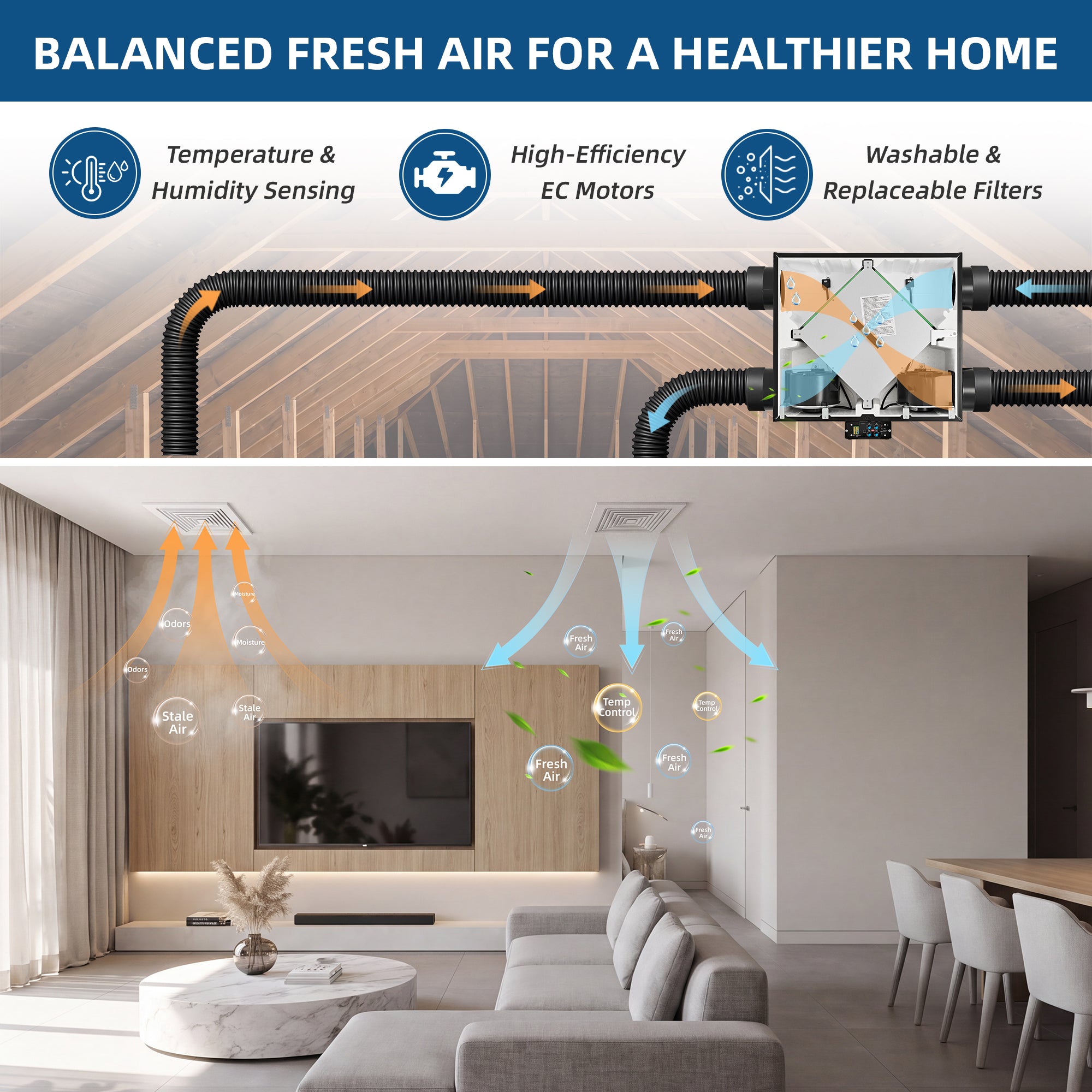

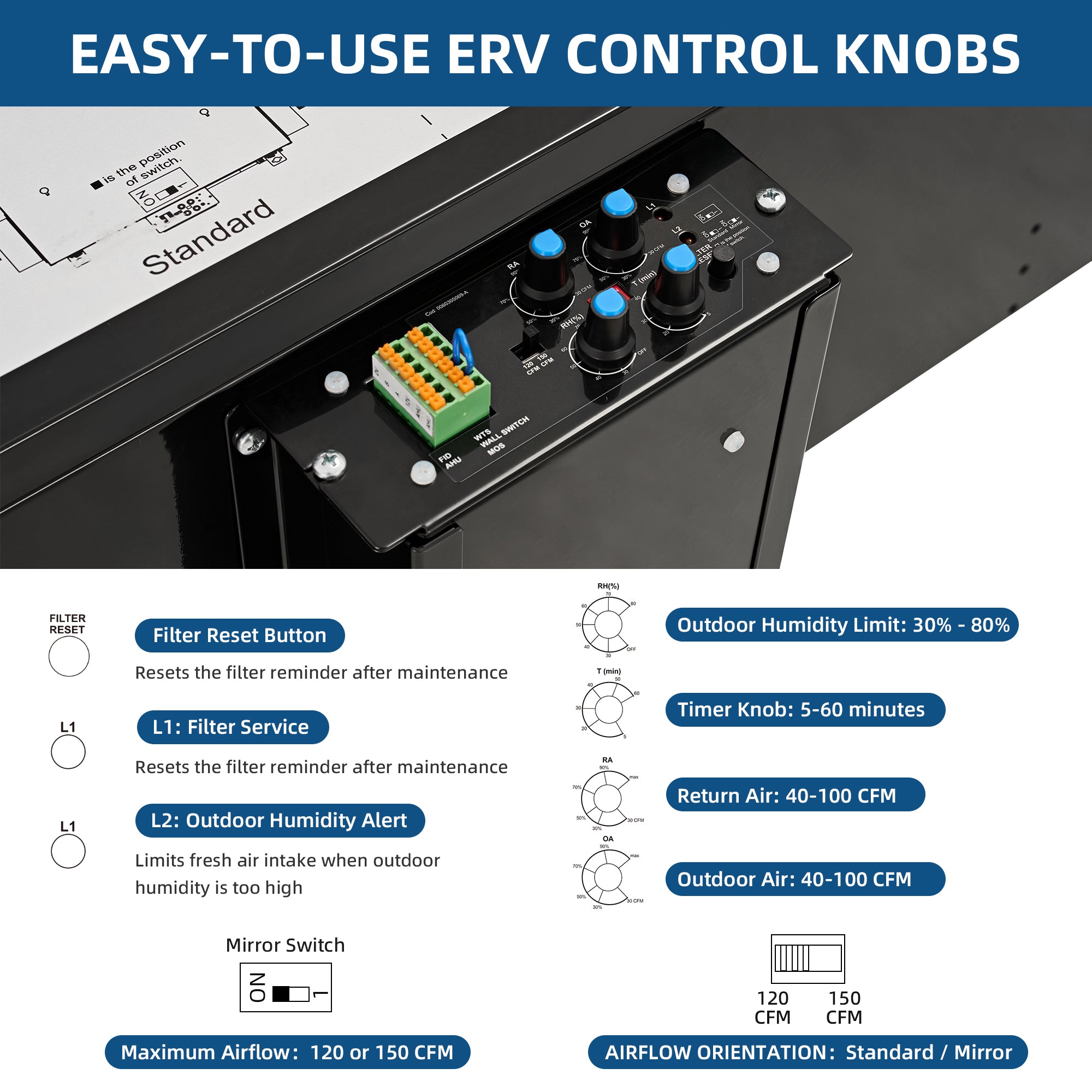

[OUTDOOR HUMIDITY & DEFROST] Adjustable 30%–80% outdoor humidity control helps the energy recovery vent fan respond as outdoor conditions change. Automatic exhaust-only defrost adjusts operation according to outdoor temperature to support cold-weather use, while the built-in timer lets you customize ventilation runtime from 5 to 60 minutes per hour.

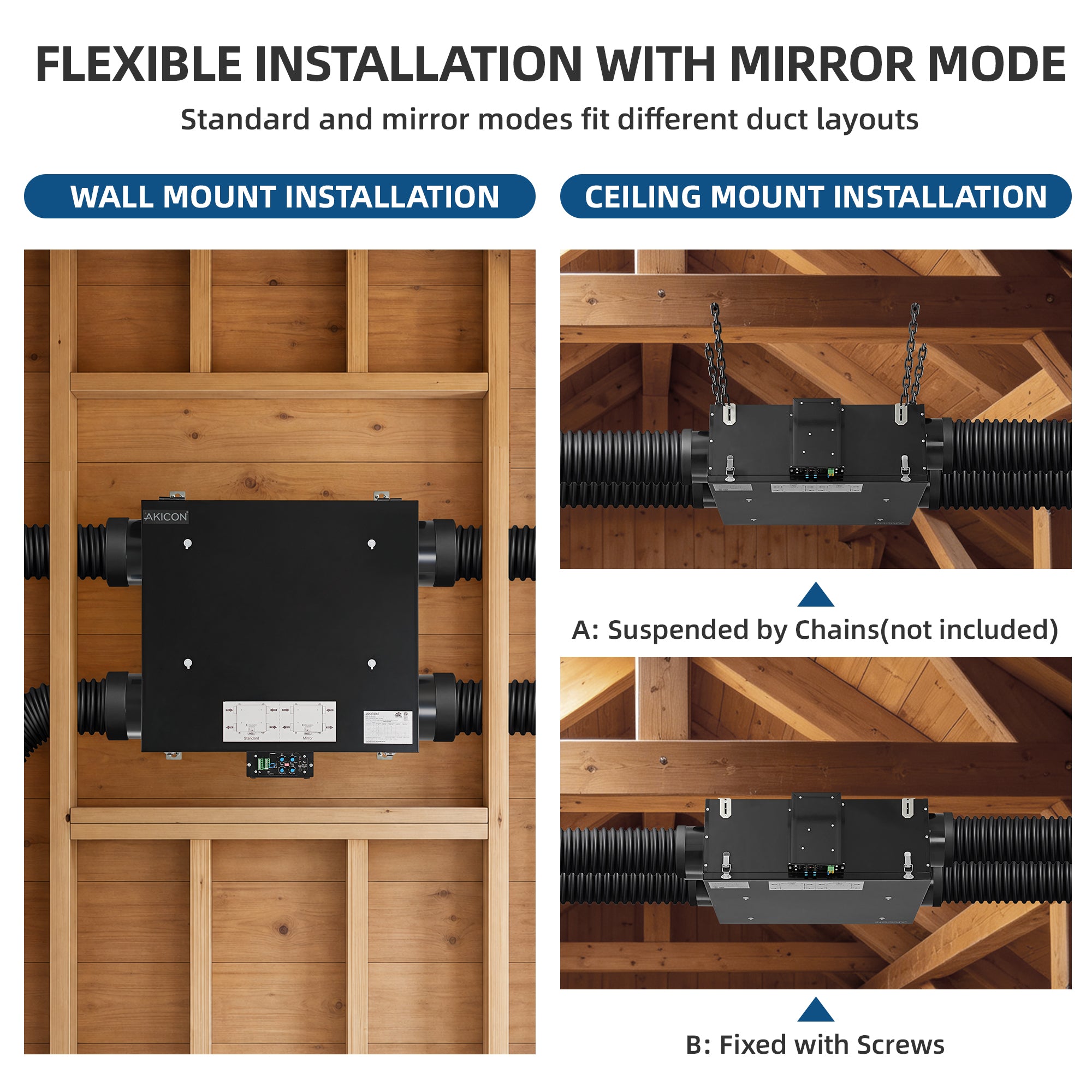

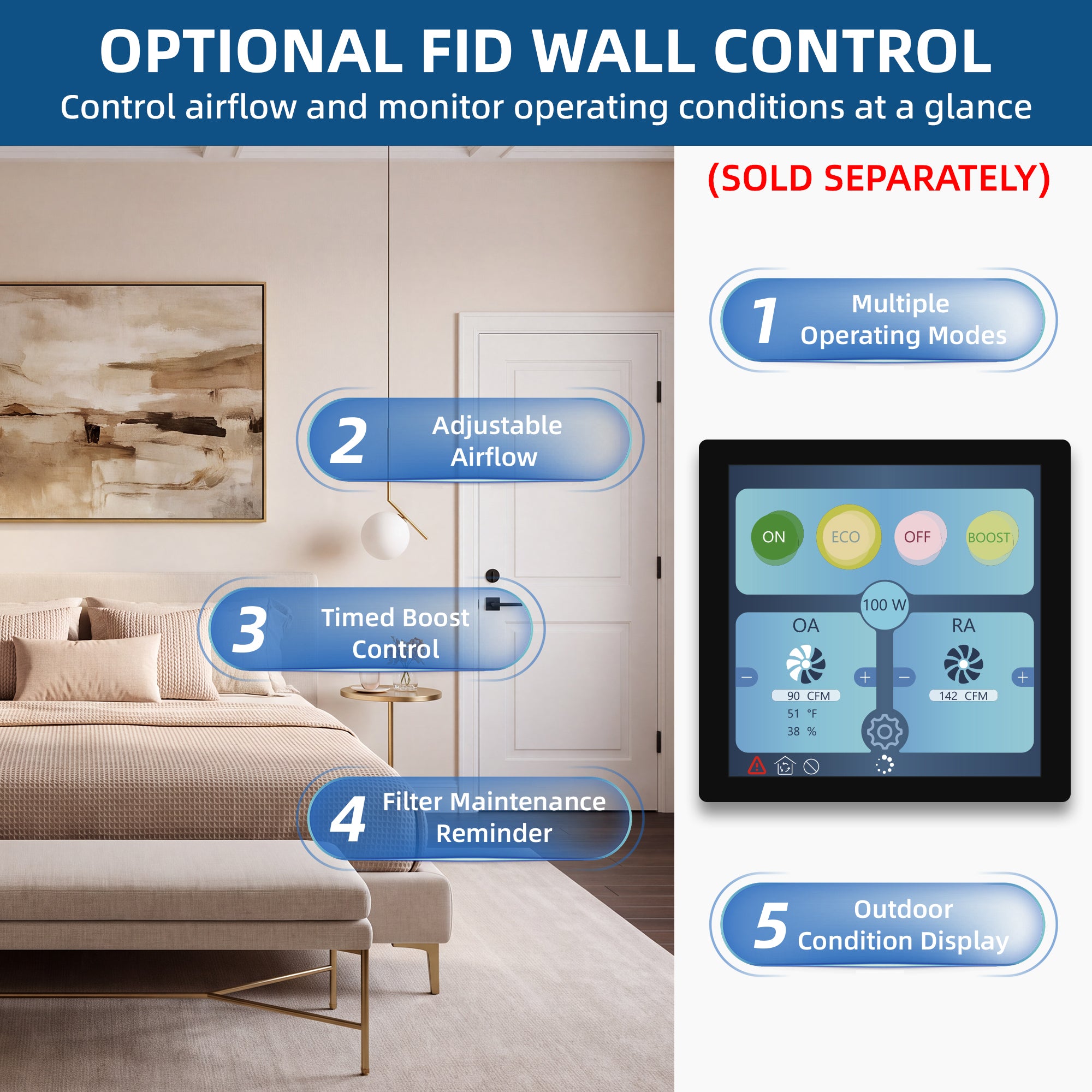

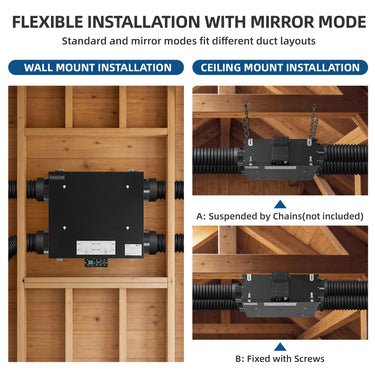

[FLEXIBLE INSTALL & CONTROL] Standard and Mirror configurations let installers reverse the airflow-port layout to better match different duct-routing needs. Washable filters and a built-in service reminder simplify routine care. The unit operates with built-in controls, while optional FID control, wall switch, MOS manual override and wall timer can be added for greater flexibility.

Instruction Manual.PDF
